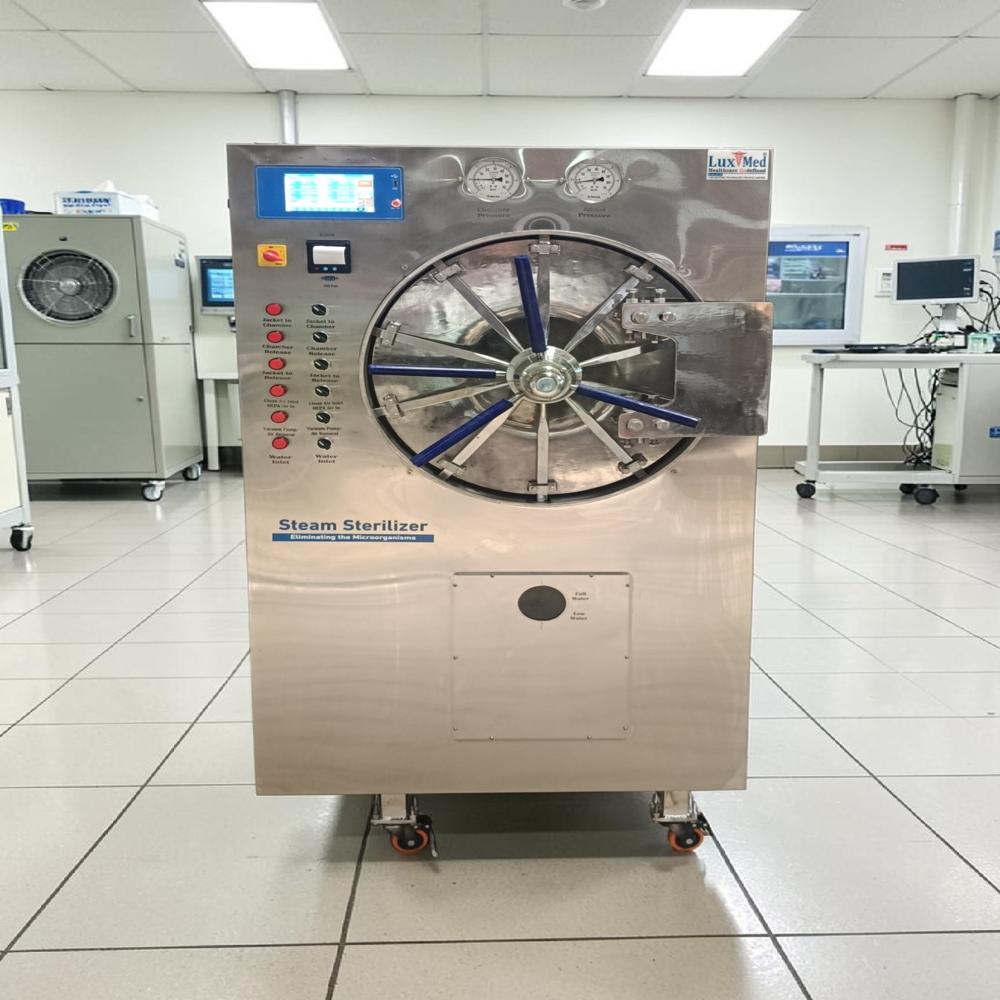

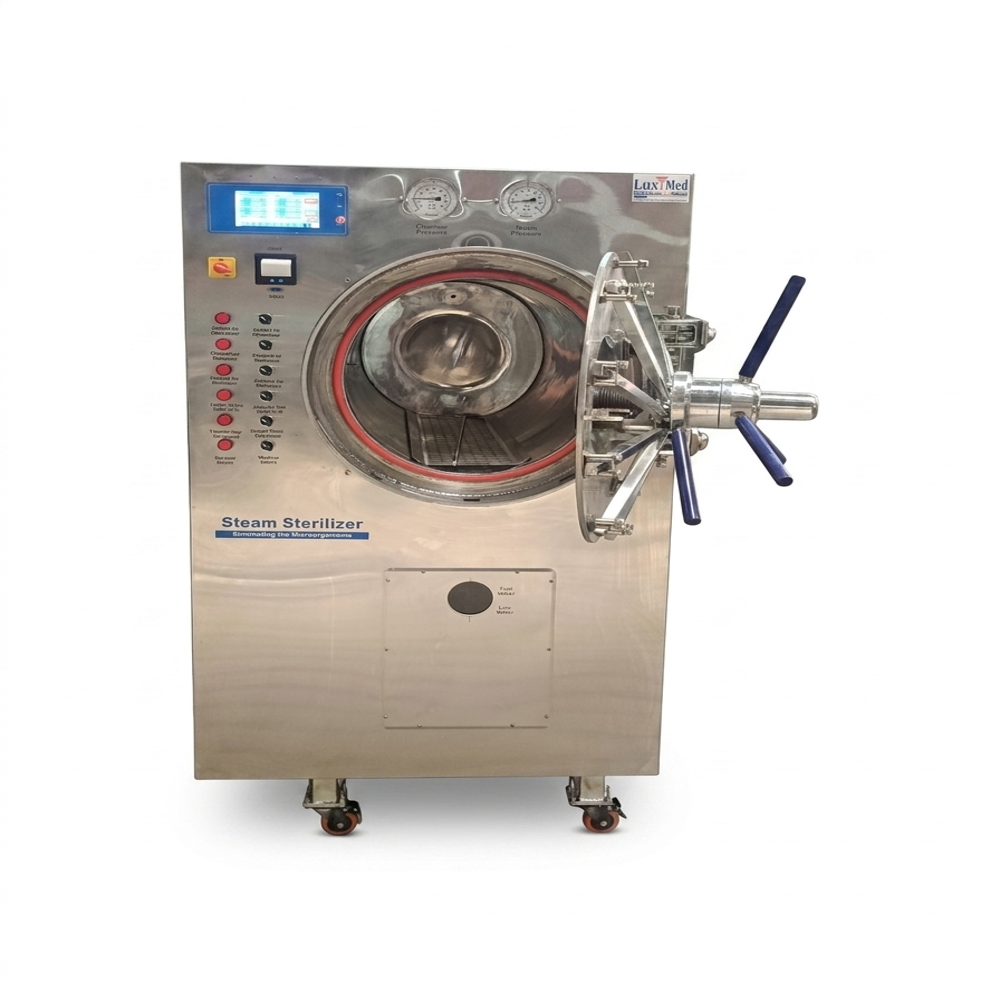

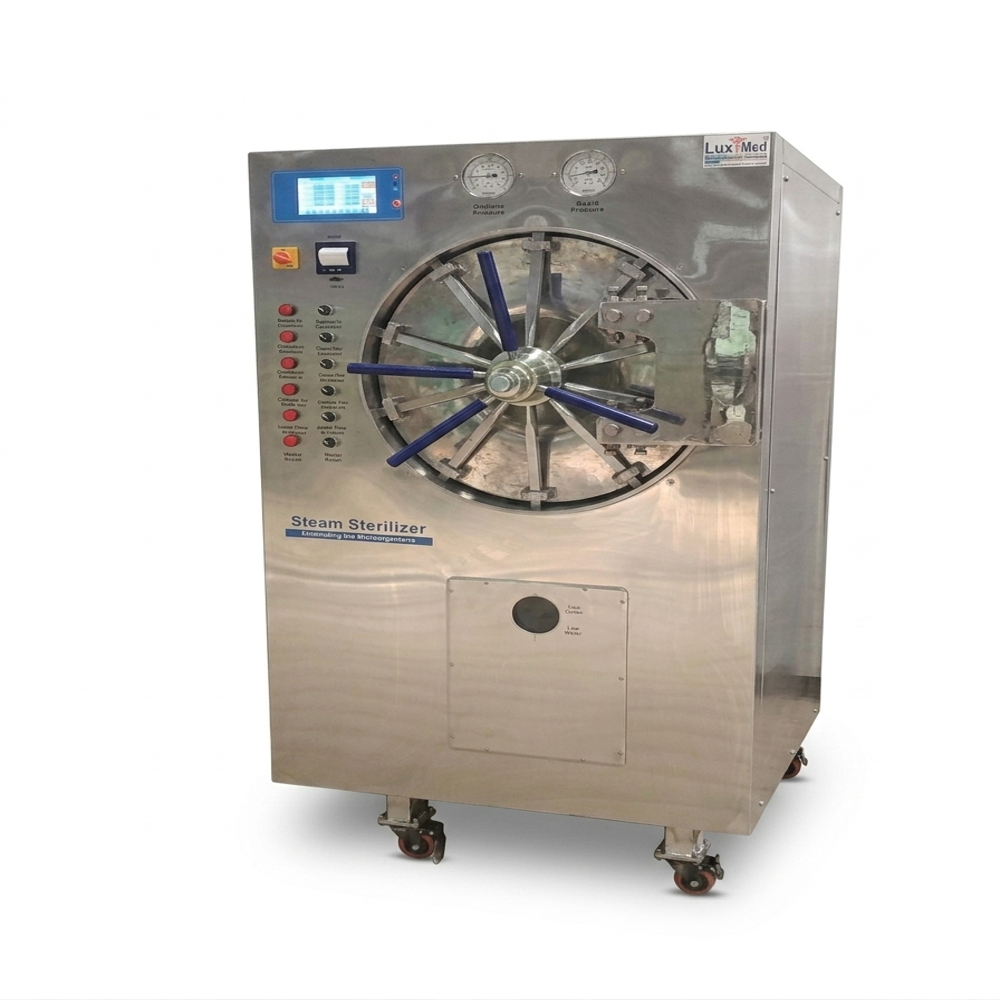

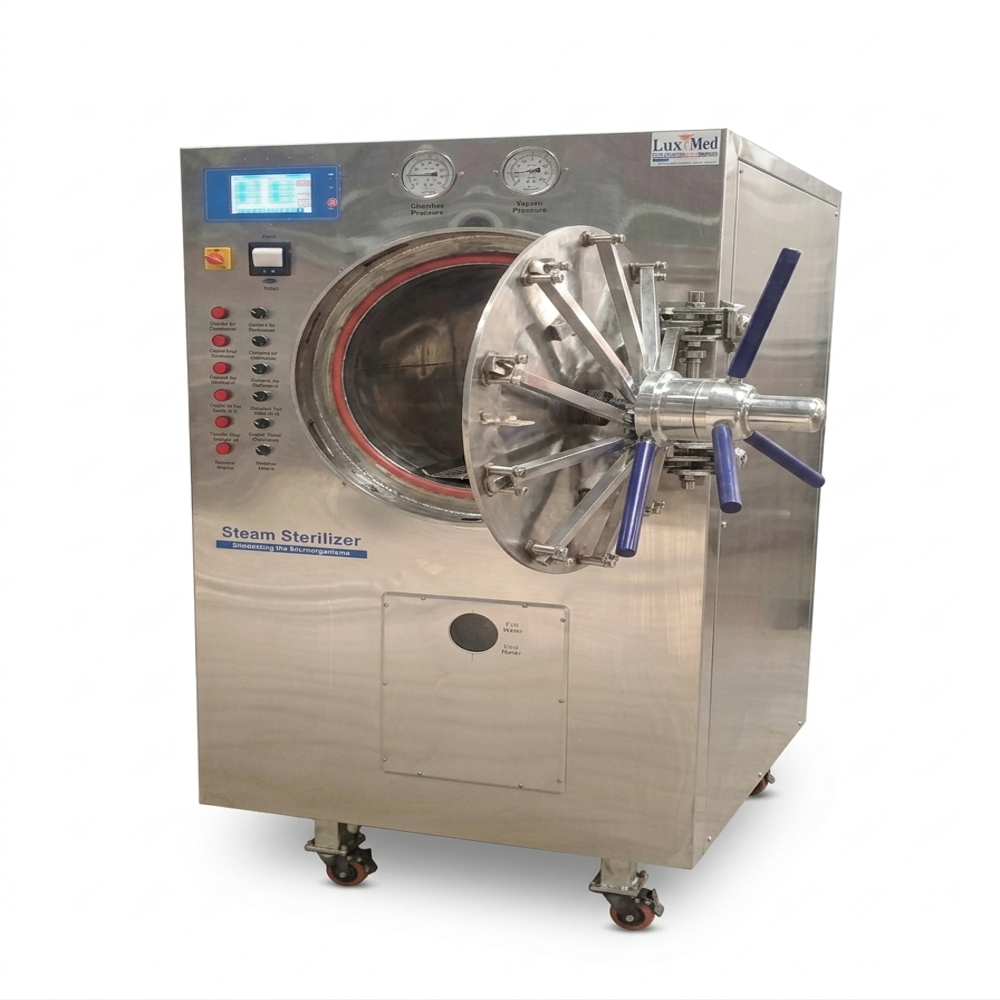

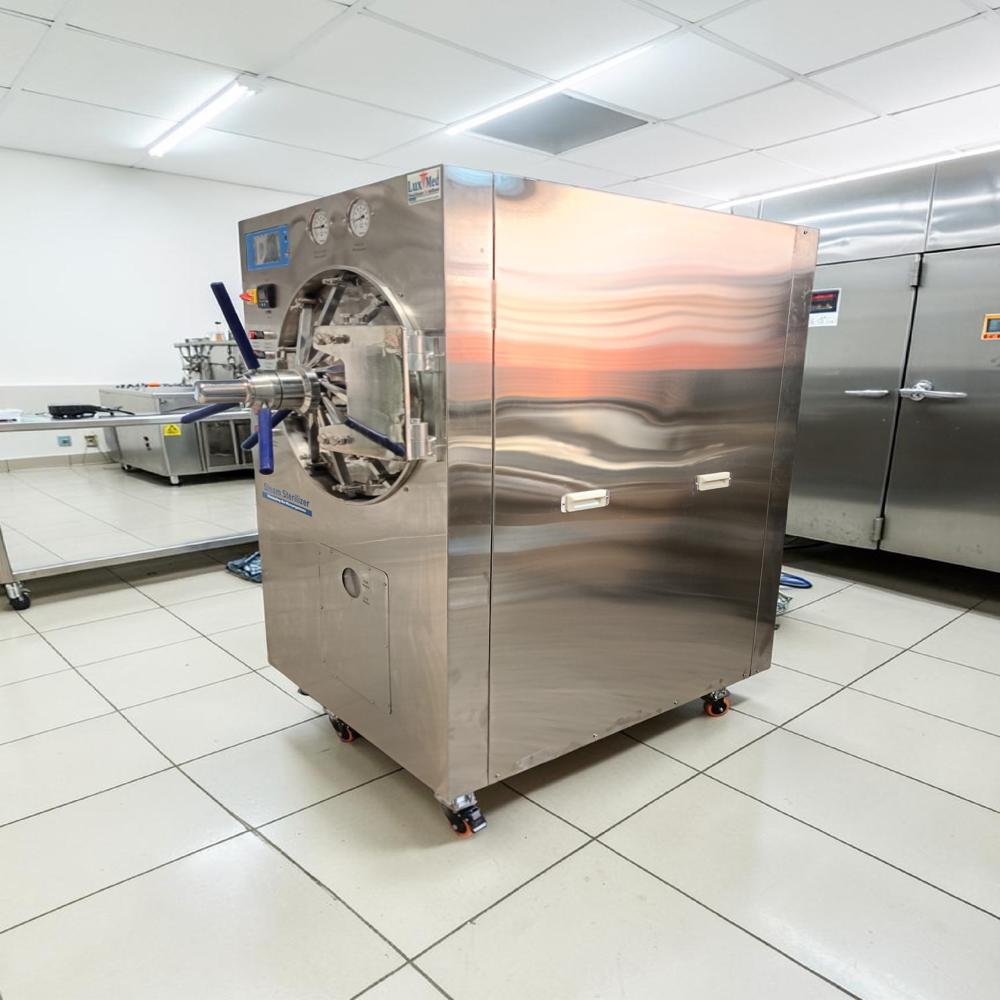

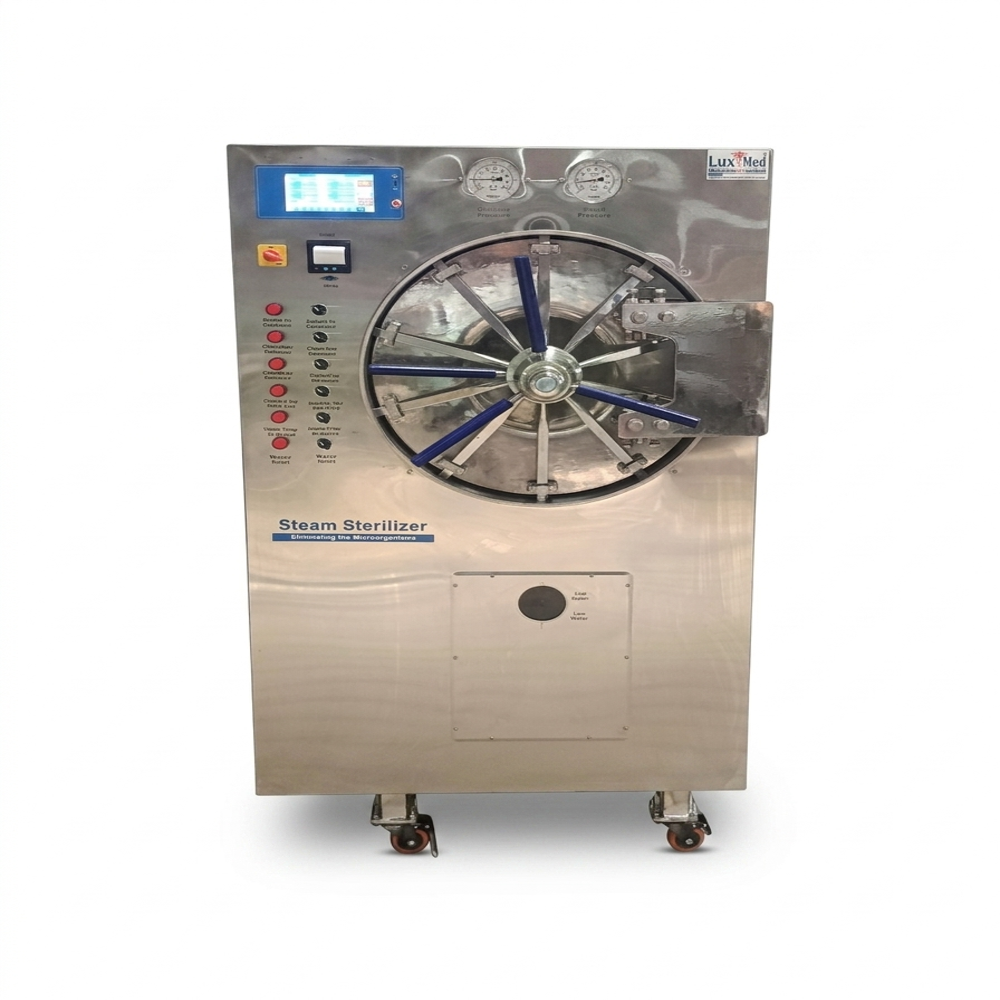

Send InquiryCylindrical Steam Sterilizer Single Door
Price 550000.0 INR/ Piece
MOQ : 1 Piece
Cylindrical Steam Sterilizer Single Door Specification
- Voltage
- 220 Volt (v)
- Type
- Cylindrical Horizontal Steam Sterilizer, Horizontal Cylindrical
- Chamber Size
- 600 mm Diameter x 1200 mm Length
- Chamber Thickness
- 6-8 mm (Stainless Steel)
- Outer Size
- 1800 mm x 700 mm x 900 mm
- Compressed Air
- 5-7 bar
- Door Type
- Single Door
- Design Pressure
- 2.5 bar
- Working Pressure
- 1.2 - 2.1 bar
- Design Temperature
- 140C
- Heat Uniform
- 1C Distribution
- Insulation
- High-density Glass Wool
- Net Weight
- Approx. 300 kg
- Recording Parameters
- Digital Temperature & Pressure Printout/Display
- Spraying Mode
- Uniform Multi-directional Spraying
- Outer Trolley
- Stainless Steel Construction
- Inner Trolley
- Removable Stainless Steel
- Spraying Piping
- Corrosion-resistant Stainless Steel
- Steam
- Saturated Steam (121C-134C)
- Sterilizing Temperature
- 121C/134C
- Working Temperature
- Up to 134C
- Sterilization Time
- 15 - 60 minutes (Adjustable)
- Temperature Scope
- Ambient to 134C
- Piping System
- SS 304/316 High-quality piping
- Valves
- Automatic Safety and Exhaust Valves
- Power Consumption
- 5-7 kW
- Electrical Supply
- 220-240 V AC, 50/60 Hz
- Finish
- Mirror Polish Inner, Matt Outer
- Drain System
- Efficient Condensate & Waste Discharge
- Gasket Material
- Silicone/Neoprene
- Water Consumption
- Approx. 20-25 Litres per cycle
- Mounting
- Floor Mounted, Free Standing
- Environmental Conditions
- Ambient 5-40C, RH 85%
- Heating System
- Electric Heaters/Direct Steam
- Door Gasket Compression
- Manual or Automatic Locking
- Alarm System
- Audio-Visual End Cycle Alert
- Control System
- Microprocessor Based Automatic Control
- Application
- Hospital, Laboratory, Pharmaceutical Sterilization
- Chamber Material
- Stainless Steel 304/316
- Surface Coating
- Anti-Corrosive Epoxy
- Safety Features
- Pressure Relief Valve, Over Temperature Cut-off
Cylindrical Steam Sterilizer Single Door Trade Information
- Minimum Order Quantity
- 1 Piece
- Delivery Time
- 14 Days
About Cylindrical Steam Sterilizer Single Door
LuxMed Steam Sterilizer Reliable Sterilization for Healthcare, Laboratory & Industrial Applications
LuxMed Steam Sterilizers, also known as autoclaves, are designed for efficient sterilization using high-pressure saturated steam technology. These advanced sterilization systems are widely used in hospitals, laboratories, pharmaceutical industries, biotechnology facilities, research centers, and industrial production environments.
The system effectively destroys microorganisms including bacteria, viruses, fungi, and spores, ensuring safe and contamination-free processing of instruments and materials.
Built with high-grade stainless steel construction and advanced vacuum technology, LuxMed Steam Sterilizers deliver superior performance, operational safety, energy efficiency, and long service life.
Advanced Microprocessor Controls
This sterilizer employs a microprocessor-based automatic control system, offering users configurable cycle parameters and real-time digital displays for temperature and pressure. Its programmable logic ensures each sterilization process adheres to strict standards, optimizing safety and consistency, essential for medical and laboratory environments.
Superior Build & Hygiene
Crafted with stainless steel 304 or 316, the chamber is highly resistant to corrosion, chemical damage, and wear. The chamber's mirror-polished interior and matt-finish exterior simplify cleaning and enhance hygiene. Anti-corrosive epoxy coating and high-quality insulation further protect against harsh environmental conditions and maintain energy efficiency.
Efficient Operation & Safety
The sterilizer features efficient water and drainage systems, utilizing approximately 20-25 litres per cycle, and incorporates comprehensive audio-visual end-cycle alarms and automatic safety valves. Redundant pressure and temperature cut-offs, along with high-density glass wool insulation, guarantee safe and consistent operation under diverse ambient conditions.
FAQ's of Cylindrical Steam Sterilizer Single Door:
Q: How does the microprocessor-based control enhance the sterilization process?
A: The microprocessor-based automatic control system precisely manages temperature, pressure, and cycle duration. This minimizes human error, ensures thorough sterilization according to preset parameters, and provides real-time digital monitoring for enhanced process reliability.Q: What type of materials are used for the chamber and valves, and why are they important?
A: The chamber and piping are constructed from high-grade SS 304/316 stainless steel, offering robustness and exceptional corrosion resistance, which ensures longevity, hygiene, and compliance with rigorous medical and laboratory standards.Q: When and where should this sterilizer be used?
A: This cylindrical steam sterilizer is ideal for environments requiring stringent sterilization standards, such as hospitals, clinical laboratories, and pharmaceutical facilities. It is suitable for regular, heavy-duty use due to its durable and free-standing floor-mounted design.Q: What is the process for operating the sterilizer?
A: Users load items onto the removable stainless steel trolley, select cycle parameters on the microprocessor panel, close the single door (manual or automatic locking), and initiate the cycle. The unit automatically manages heating, timing, steam spraying, and end-of-cycle alerts for user convenience.Q: How much water and power does the sterilizer consume per cycle?
A: Each sterilization cycle uses approximately 20-25 litres of water and has a power consumption ranging from 5-7 kW. Efficient water management and high insulation reduce wastage and maintain energy efficiency.Q: What are the main safety features provided by this sterilizer?
A: Safety is ensured by automatic pressure relief valves, over-temperature cut-offs, efficient drainage, and an insulated chamber. Audio-visual end-cycle alarms notify users when the process is complete, mitigating risk and enhancing operational safety.Q: What benefits does digital temperature and pressure recording offer?
A: Digital recording of temperature and pressure parameters ensures complete traceability for each cycle. This facilitates compliance with regulatory requirements, enables audit-ready documentation, and provides assurance of proper sterilization.
